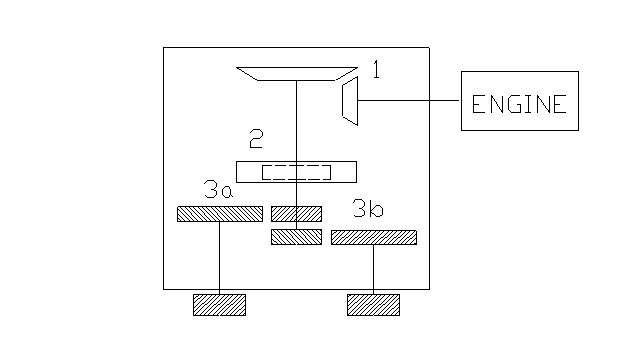

There are 3 levels of gear down:

1. Face gears with straight teeth, velocy ratio equal to 14/75;

2. Annular gears with straight teeth, velocity ratio equal to 18/63;

3a = 3b. Helical gears, velocity ratio equal to 21/56.

The global velocity ratio is 1/50.
